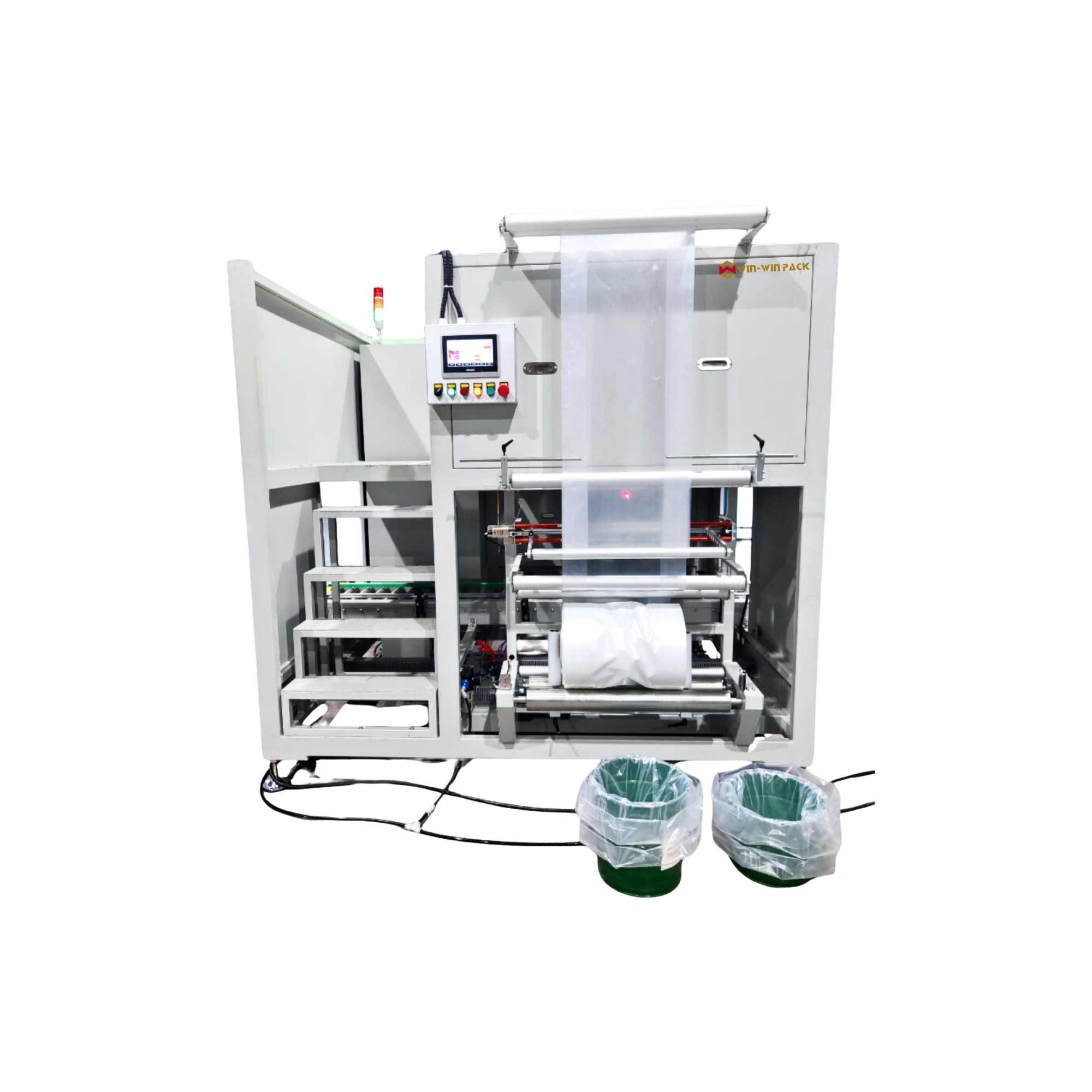

WWP-03BTP

Tungsten powder barrel bag inserter

The Tungsten Powder Barrel Bagging Machine is a fully automatic solution for inserting one or two plastic liner bags into iron barrels. With a capacity of 2–6 barrels per minute, it delivers stable performance, one-touch operation, and seamless production line integration, helping reduce labor costs and improve packaging efficiency in powder metallurgy, chemical, pharmaceutical, and food industries.

## Technical Specifications

| Item | Specification |
|---|---|
| Machine Model | WWP-03BTP |
| Power Supply | 380V, 50Hz, 6.5 kW |
| Applicable Barrel Size | Diameter: Φ290–350 mm<br>Height: 280–400 mm |
| Bagging Speed | 2–6 barrels/min (single or double layer) |
| Table Height | 650 mm |
| Film Type | M-type folded tubular film |
| Air Supply | 6–7 kg |
| Machine Dimensions | 2250 × 1670 × 2050 mm |

## Features

The Tungsten Powder Barrel Bagging Machine is specially designed for inserting plastic liners into iron barrels in the tungsten powder industry. It supports both single-layer and double-layer bag insertion according to different product requirements. With a processing speed of 2–6 barrels/min depending on the number of bag layers, the machine provides high stability, an independent control panel, and one-touch start operation.

The machine adopts forward bagging technology:

1. The clamping jaws pull and transfer the plastic film to the top of the tungsten powder barrel.

2. The bag-stretching mold expands the film and secures it in position.

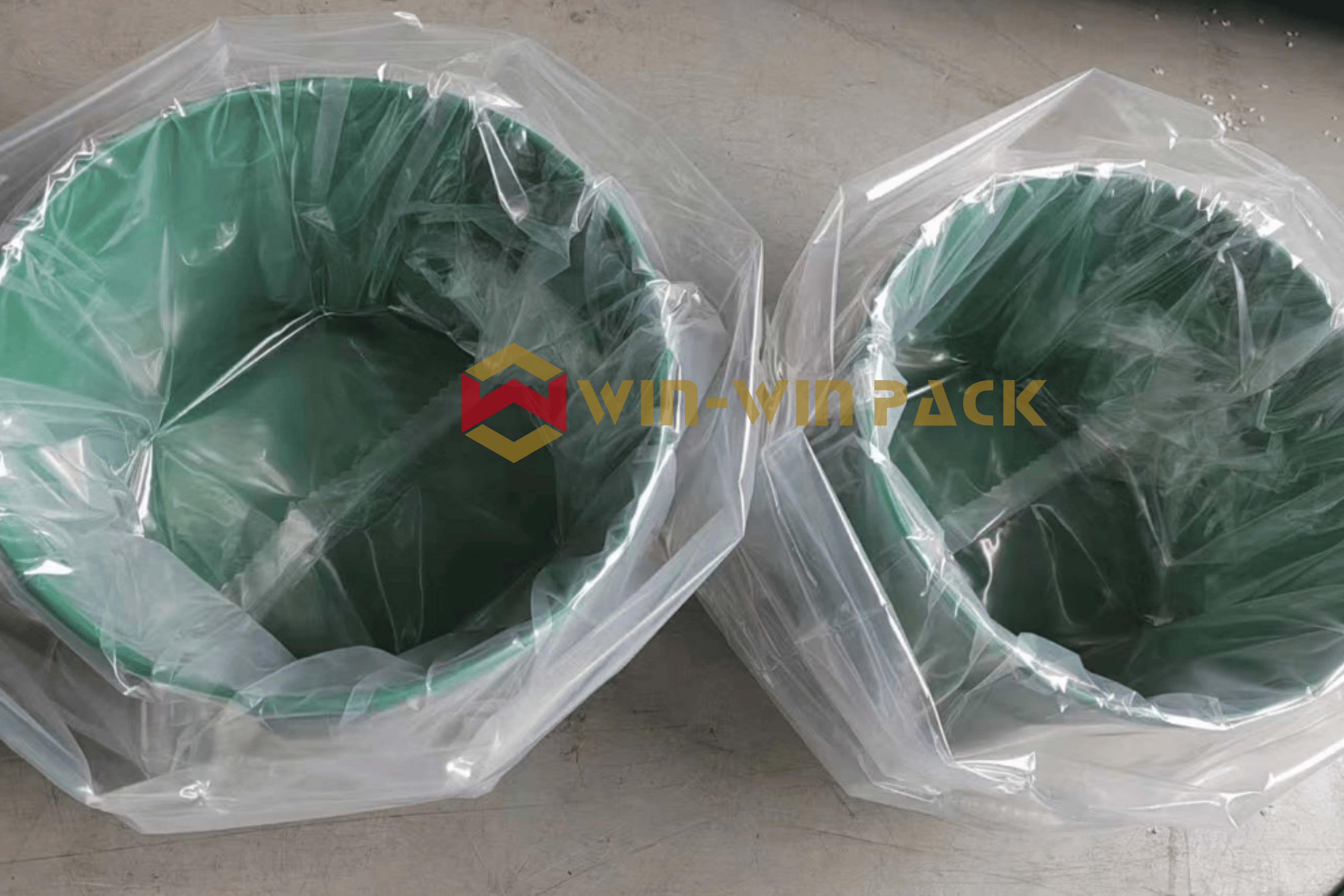

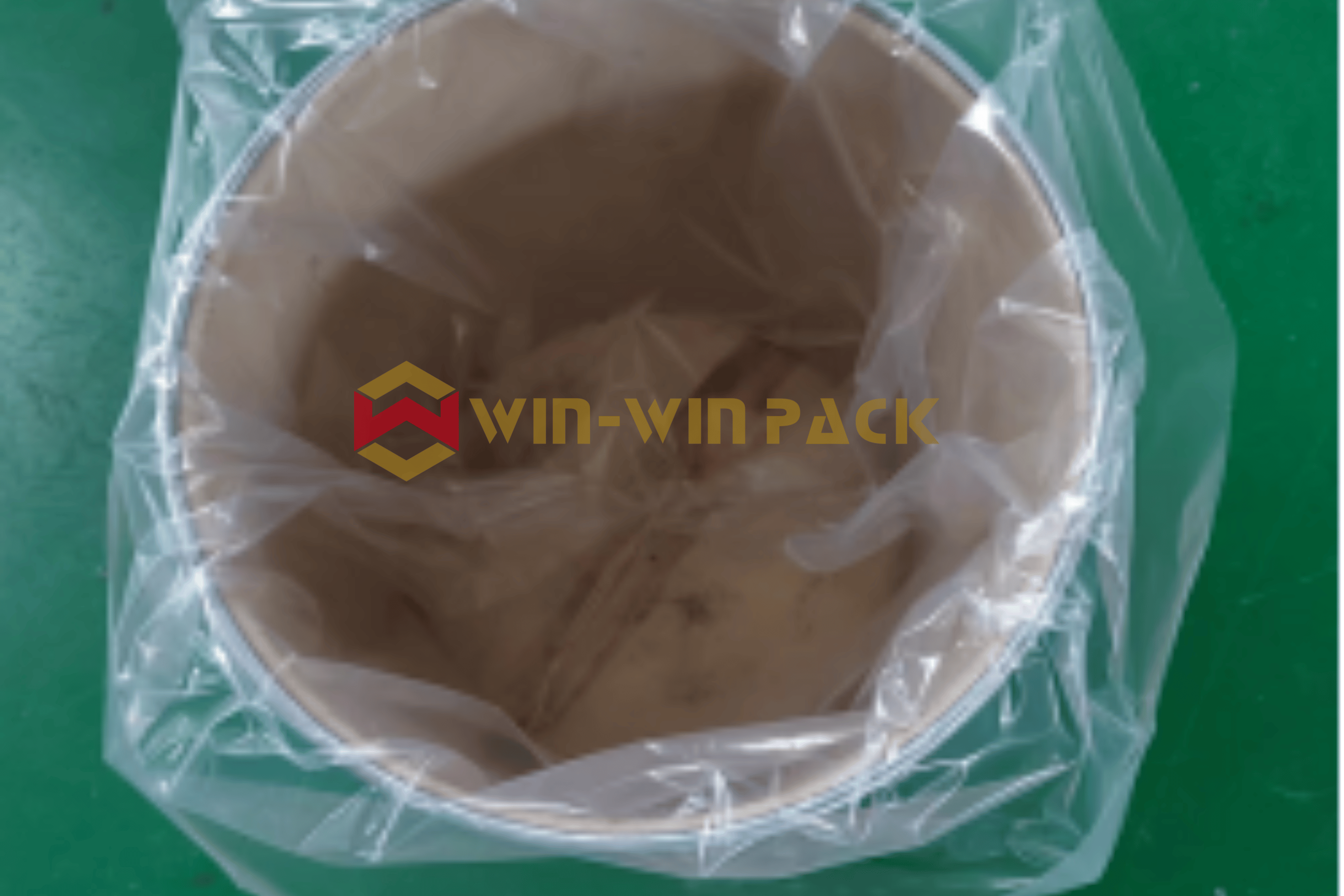

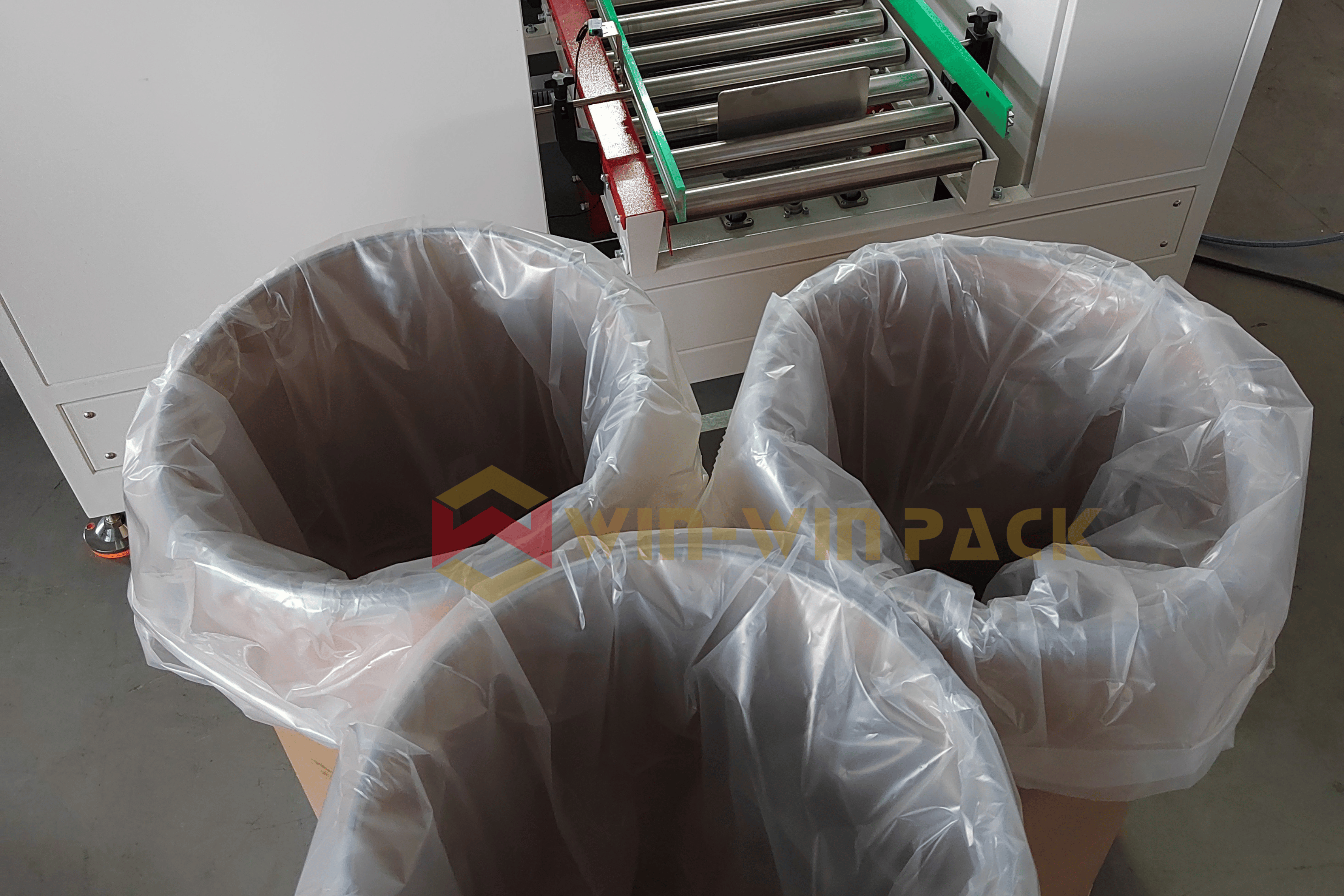

3. The film is inserted into the bottom of the barrel and folded over the outer rim, completing the automatic bagging process.

This fully automatic bagging solution is specially developed for the powder metallurgy industry. It allows flexible selection of single-layer or double-layer bagging methods based on product characteristics and customer requirements.

By automating the bag insertion process, the machine reduces labor requirements, material consumption, and production space costs. It is easy to operate, simple to adjust, and can be seamlessly integrated with production lines to improve efficiency while reducing manual operation.

It is widely used in packaging applications for chemical raw materials, oil-based materials, pharmaceutical raw materials, food ingredients, and other industries.
